Continous tube welding machine integrated into a fully automatic production system for short tubes
Automation
The line produces laser-welded hollow sections from coil or plates.
Production of automotive tubes
From individual elements of the exhaust system to rear axles, engine mounts or other bodywork elements, the Tubestar system produces high-quality parts with different geometries in large quantities. Short changeover times enable the demand oriented production of various tubular elements.
Application-specific rolling process
When rolling rubes with small diameters and large sheet thicknesses, the use of tools guarantees the proper rolled form of the finished tube.
Thin or perforated tubes can be roll formed with a roll-forming machine.
| Tubestar 100 | Tubestar 150 | |
| Tube diameter | 23 - 100 mm | 50 - 150 mm |
| Tube length | 210 - 1300 mm | 100 - 2000 mm |
| Material thickness | 0.3 - 2.0 mm | 0.8 - 4.0 mm |
| Materials | Steel, stainless steel* | Steel, stainless steel* |
| Welding source | Laser, TIG, Plasma | Laser, TIG, Plasma |
| Output | up to 800 tubes/h | up to 960 tubes/h |
*Other materials upon request.

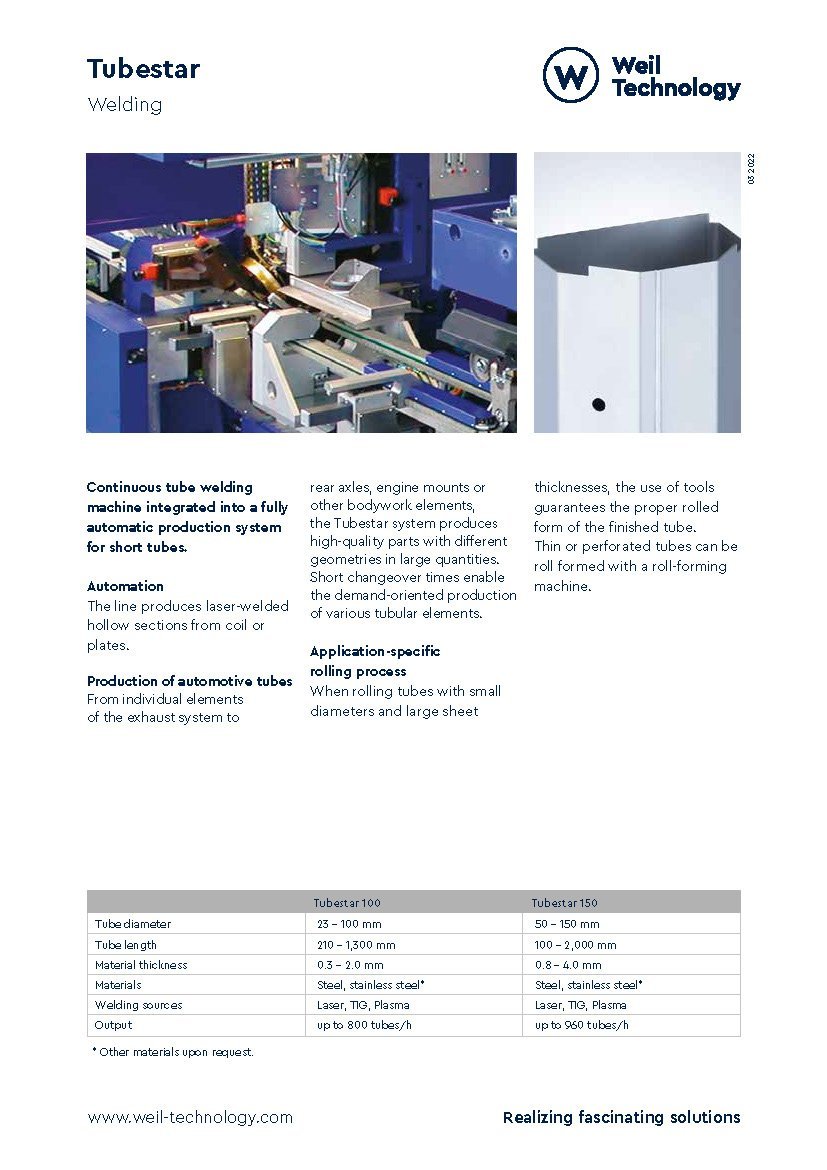

Download PDF here:
