The interlinking of the stand-alone systems (roll forming and welding) creates a production center for tubes through automation
From sheet to tube
A destacking system loads plates of up to 2,000 mm onto a slide-in table (up to four blanks at a time, depending on the tube length).
Automatic transfer
A portal handling system automatically loads and unloads the roll forming and welding station and transports the finished welded tubes to opzional downstream operations - such as brushing and calibrating.
Automation
The automatic destacking and loading of the roll forming and welding station eliminates the need for manual intervention.
Versatile possibilities
Flexibility in terms of the geometries, diameters and lengths of tubes are what characterizes the systems from Weil Technology.
Cycle
Simultaneous processing of several parts in the system enables a high level of production output.
Moduar concept
The combination of Stacker, Multiroller, Flexmaster, Portal Handling and Equipment for tube finishing can be easily adapted to individual production requirements. The sophisticated combination of multiroller and welding system makes oval and round geometries possible.
| Production centre for ventilation tubes | Production centre for chimney tubes and catalytic converters | |
| Diameter | 76 - 400 mm | 76 - 400 mm |
| Tube length | 200 - 2000 mm | 120 - 1270 mm |
| Material thickness | 0.8 - 3.0 mm | 0.8 - 2.0 mm |
| Materials | Steel, stainless steel* | Steel, stainless steel* |
| Welding source | Laser, TIG, Plasma | Laser, TIG, Plasma |
| Output | up to 580 tubes/h | up to 240 tubes/h |
*Other materials upon request.

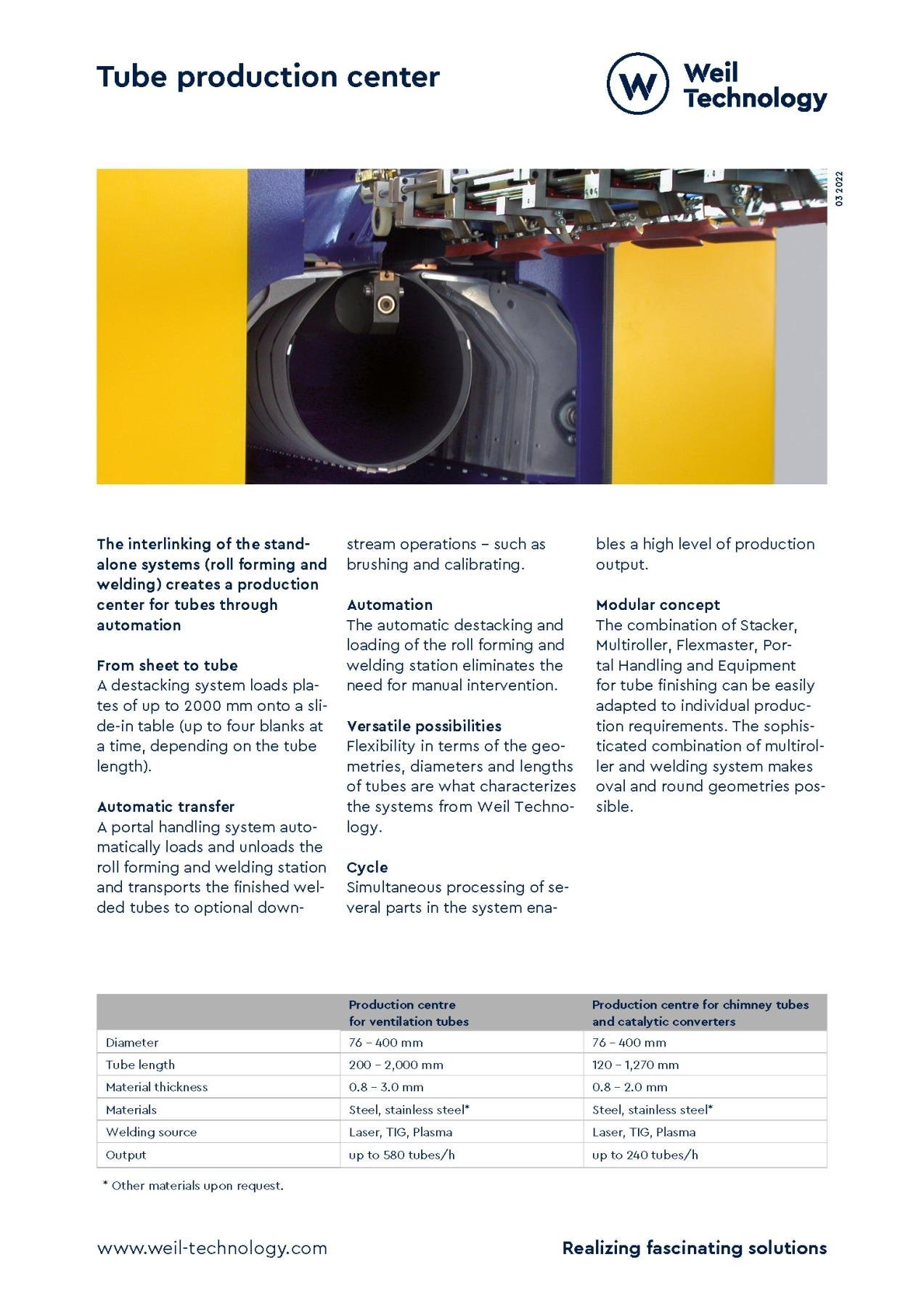

Download PDF here:
