The NC-controlled multiroller roll forming machine produces tubes of different diameters without mechanical retooling.
The Multiroller is a proven hightech roll forming machine for the fully automatic and flexible production of tubes up to 2000 mm tube length and radii larger than 30 mm.
No changeover tool = no time lost due to changeover
Changeover to a different diameter is managed at the touch of a button. Changes in material properties can be compensated for by the parameter settings.
Tube lengths up to 2000 mm
With Multiroller technology, excellent roll forming results can be achieved with long tubes.
Small diameters
Long tubes with small diameters and materials that are difficult to form are no problem at all for the Multiroller.
Modular construction
Automation modules are available for the Multiroller as a stand-alone roll forming machine or in combination with a welding system.
| Multiroller 400/1250 | Multiroller 400/2000 | Multiroller 150/2000 | |
| Tube diameter | 80 - 400 mm | 80 - 400 mm | 60 - 150 mm |
| Tube length | max. 1250 mm | max. 2000 mm | max. 2000 mm |
| Material thickness | 0.4 - 3.0 mm | 0.8 - 3.0 mm | 0.8 - 3.0 mm |
| Materials | Steel, stainless steel* | Steel, stainless steel* | Steel, stainless steel* |
| Welding source | Laser | Laser | Laser |
| Output | up to 240 tubes/h | up to 240 tubes/h | up to 240 tubes/h |
We can advise you on further dimensions.
*Other materials upon request.

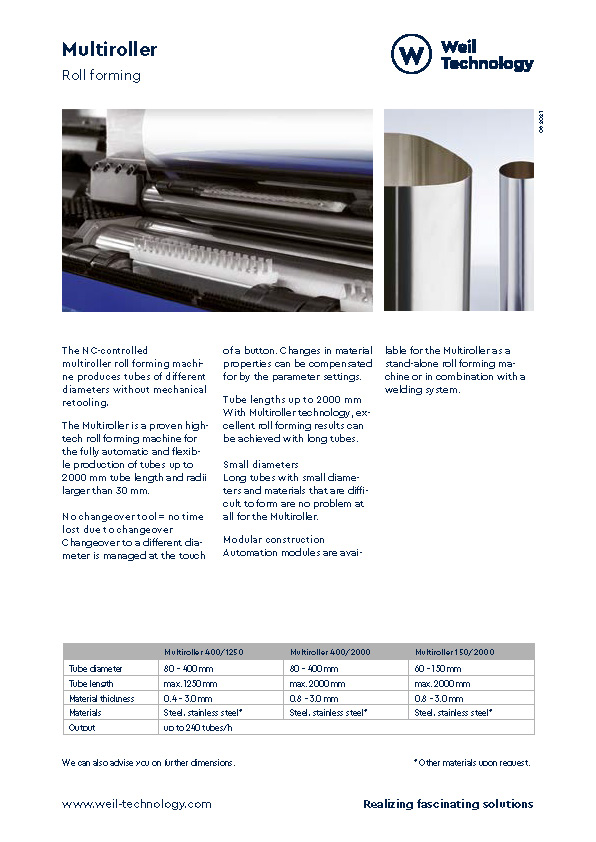

Download PDF here:
