The compact 2-station tube welding machine for maximum output
Geometry and clamping process
Round, oval and polygonal tubes can be welded by using diameter-specific tools that have been optimised for a fast clamping sequence.
Quick changeover
Ergonomically designed tool cassettes allow quick and easy diameter changes.
Easy maintance
Despite the small footprint, large maintenance doors ensure good accessibility.
Modular concept
This machine can be operated as a stand-alone solution or integrated in a fully automated production system.
One station can be loaded and unloaded.
| LRSA 250/1100 | |
| Tube diameter | 76 - 250 mm |
| Tube length | 100 - 1100 mm |
| Material thickness | 0.4 - 2.0 mm |
| Materials | Steel, stainless steel* |
| Welding source | Laser, TIG, Plasma |
| Output | up to 240 tubes/h |
*Other materials upon request.

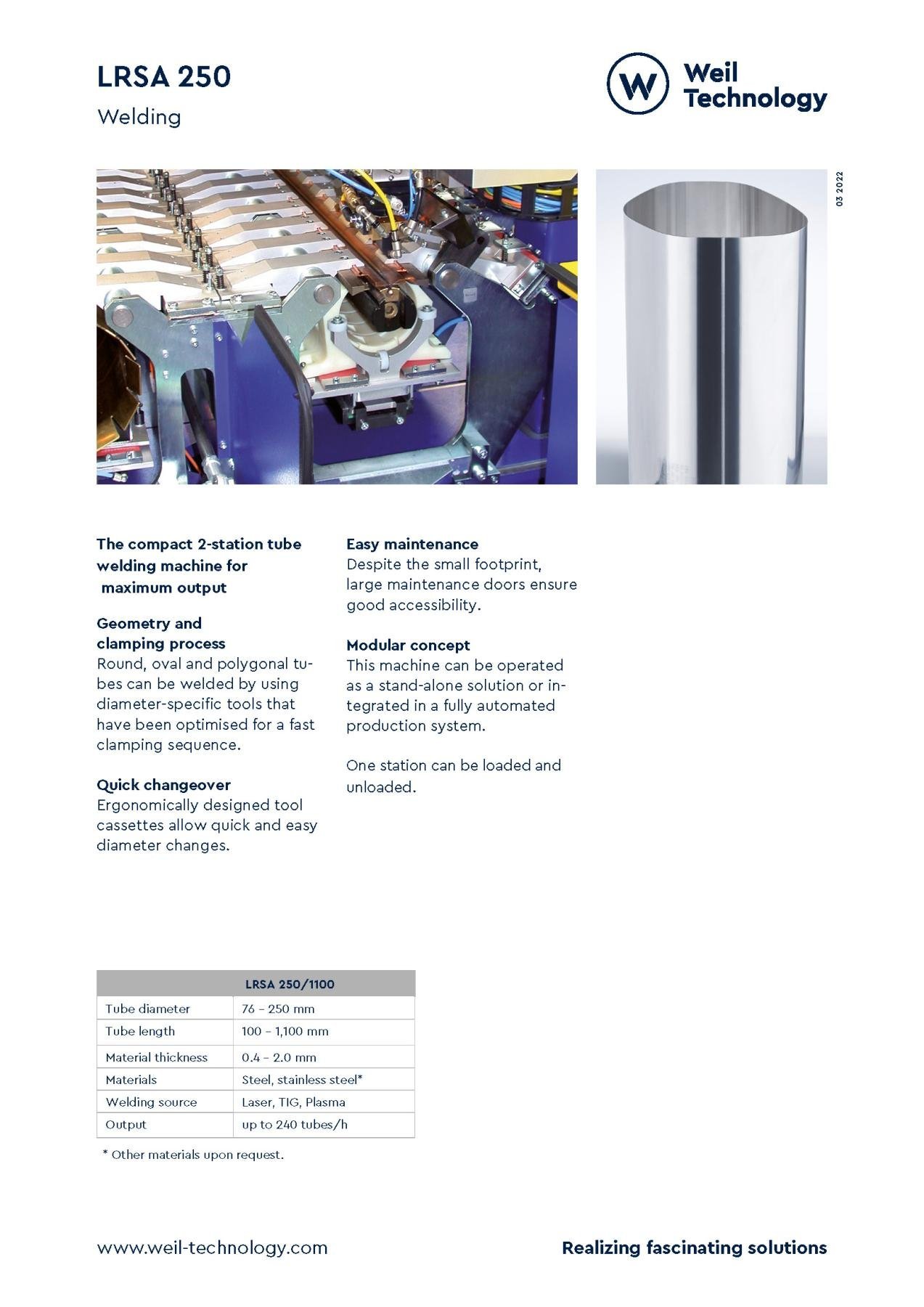

Download PDF here:
